TECHTONGDA Micro-Registration Screen Printing Hinge Clamp - Precision Alignment Tool for Silk Screen Printing Machines & DIY Hobby Printers | Perfect for T-Shirt, Poster & Fabric Printing Projects

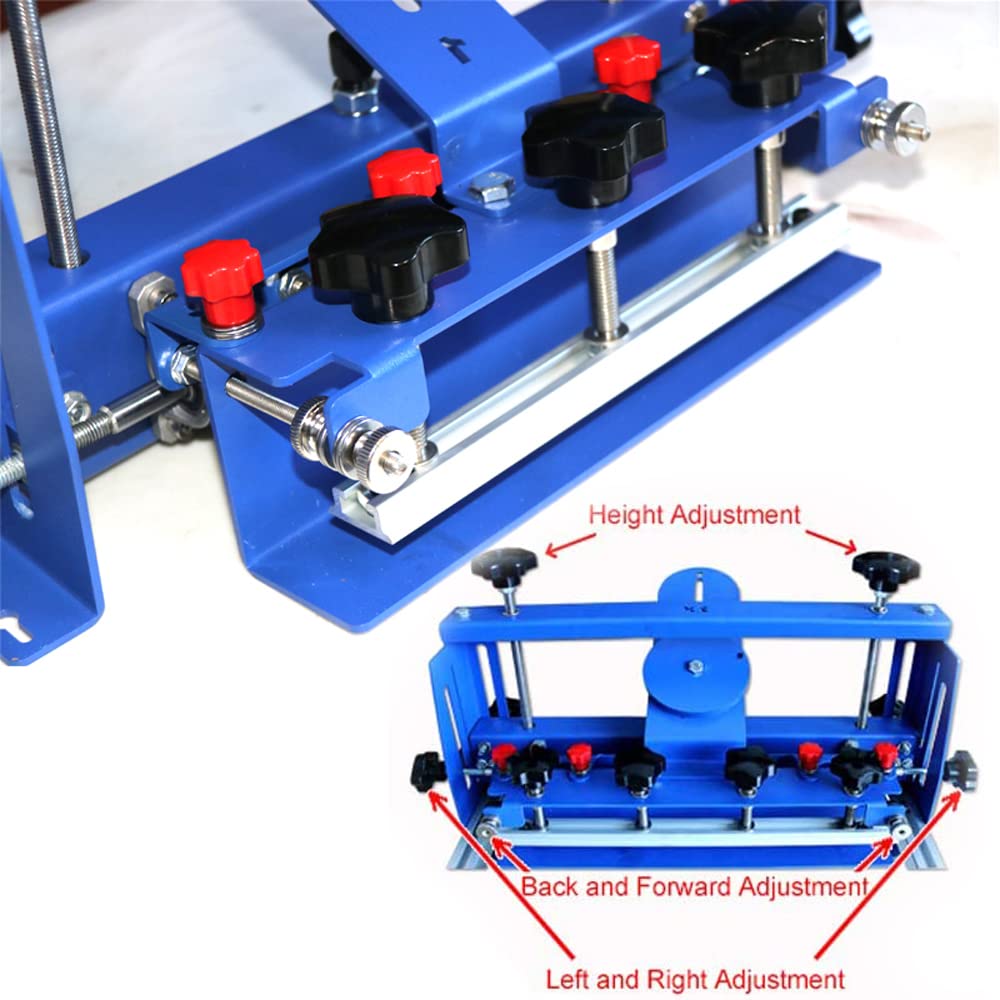

Screen Printing Hinge Clamp-11" x 3" Screen Printing Hinge Clamp-9.8"x2.4" Screen Printing Hinge Clamp-18.9" x 2.4‘’ Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 3 3.6 out of 5 stars 9 4.1 out of 5 stars 4 Price $105.99$105.99 $49.99$49.99 $55.99$55.99 Clamp size 11" x 3" （27.94x7.62cm） 9.8"x2.4"(25x6cm) 18.9" x 2.4" (48x6cm) Suggest max screen frame size 13" x17" x 2"（33.02x43.18x5.08cm） 13.7" x19.6" x 2.3" (35x50x6 cm) 13.7" x19.6" x 2.3" (35x50x6 cm) Suggest printing area: 13" x17" x 2"（33.02x43.18x5.08cm） 1.8" x 17.7" (30x45 cm) 19.6" x 23.6" (50x60cm) Handle Quantity 3 3 4 Balancer Quantity 1 1 2 micro-adjust function ✓ no data no data This item is a three-directions micro adjustable screen printing head; It can be adjusted through the knob up and down in 6.7 inch , forward and back within 1 inch, left and right in 1 inch. With micro-adjust function in 3 directions Back and forward adjustment: First, slightly loosen that four red knobs overhead the clamp, then loosen the metal knobs on both sides of the clamp and move front and rear as required. After adjusting, tighten the metal knobs and four red knobs on the top. Left and right adjustment: Loosen the handle on both sides of the press, and rotate the handle to move slightly left and right as required, after adjustment tighten both handles. Height adjustment: Place the screen frame flat on the platform. According to the substrate height or printing requirements, rotate the handle up & down to reach an appropriate height, then lock the height with the two rear positioning handles. Parameter: Clamp size: 11" x 3" (width x height) Suggest max screen frame size: 13" x17" x 2" The machine head needs to be fixed on the desktop by Self tapping or M8 screws. The Angle of the net frame is adjusted by the screws at the bottom of the balance frame, and the height of the net frame can be adjusted according to the need. The static balance of the mesh frame is adjusted by the gravity balance disk (this machine is equipped with two gravity balance disks, which can be installed individually or two according to the need ). The gravity balance plate can be moved back and forth 100mm as required; If the net frame weight is too large, can be in the balance frame top hole additional gravity. The width of the net frame chuck is 280mm and the height is 80mm. It can be used for all kinds of net frames with the thickness of 50mm or less. The net frame chuck is installed with three net frame fixing handles, and is configured with special net frame layering, and the net frame is fixed evenly and the net frame is fixed more firmly Applicable screen frame: The machine is suitable for screen frame of various materials with inner diameter of 330mm wide,length of 430mm and thickness of 50mm. Machine material: Steel Plate Metal Surface Treatment: Electrostatic Spraying Accessory materials: Stainless Steel/Galvanizing/Nickel Plating

✅【?????? ????? ????】11" x 3"; Max Screen Frame thickness 2"; Recommended Printing area 12" x 16"; Max Screen Frame size 13x17x2 inches.

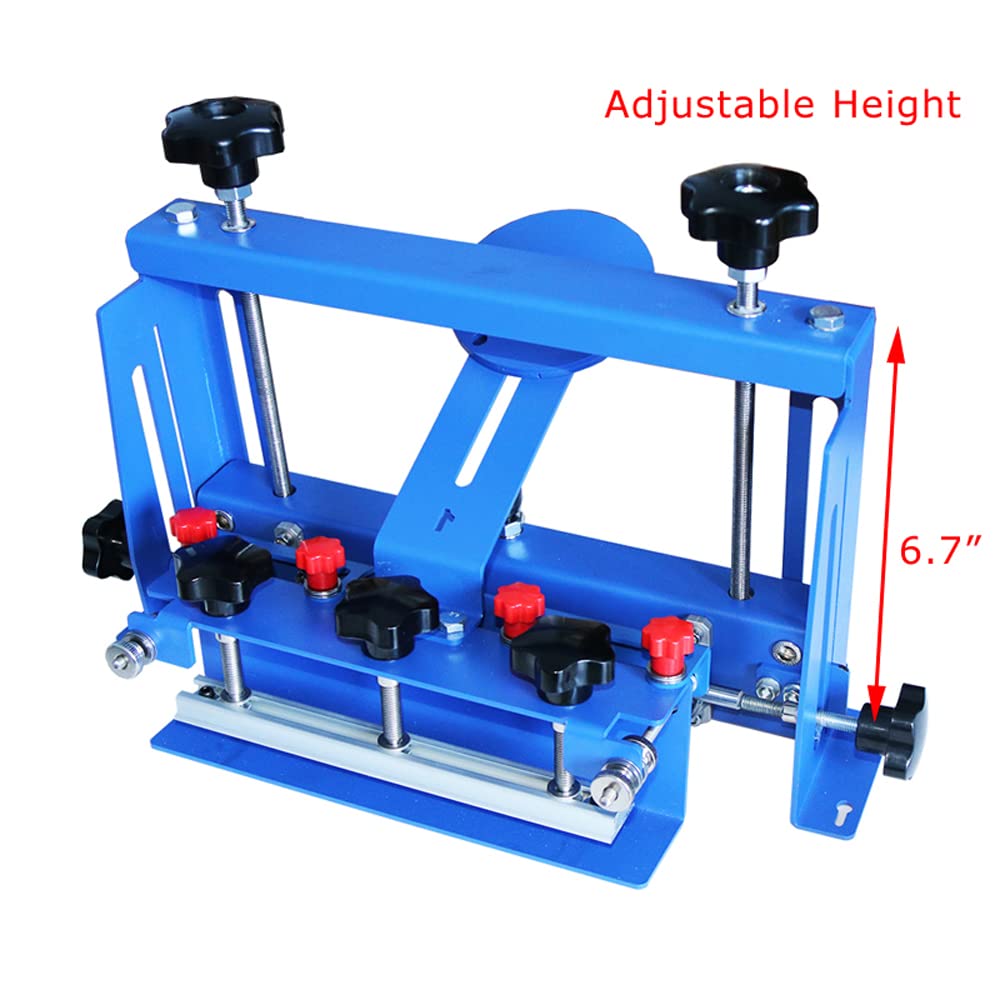

✅【?????-???????????? ????????】This is screen printing press with 3D micro-registration function. It allows you adjust the screen in 3 directions.The height of the screen can be adjusted within 6.7 inch.The screen can be adjusted within 3/4 inch in left-to-right and back-to-forward direction.

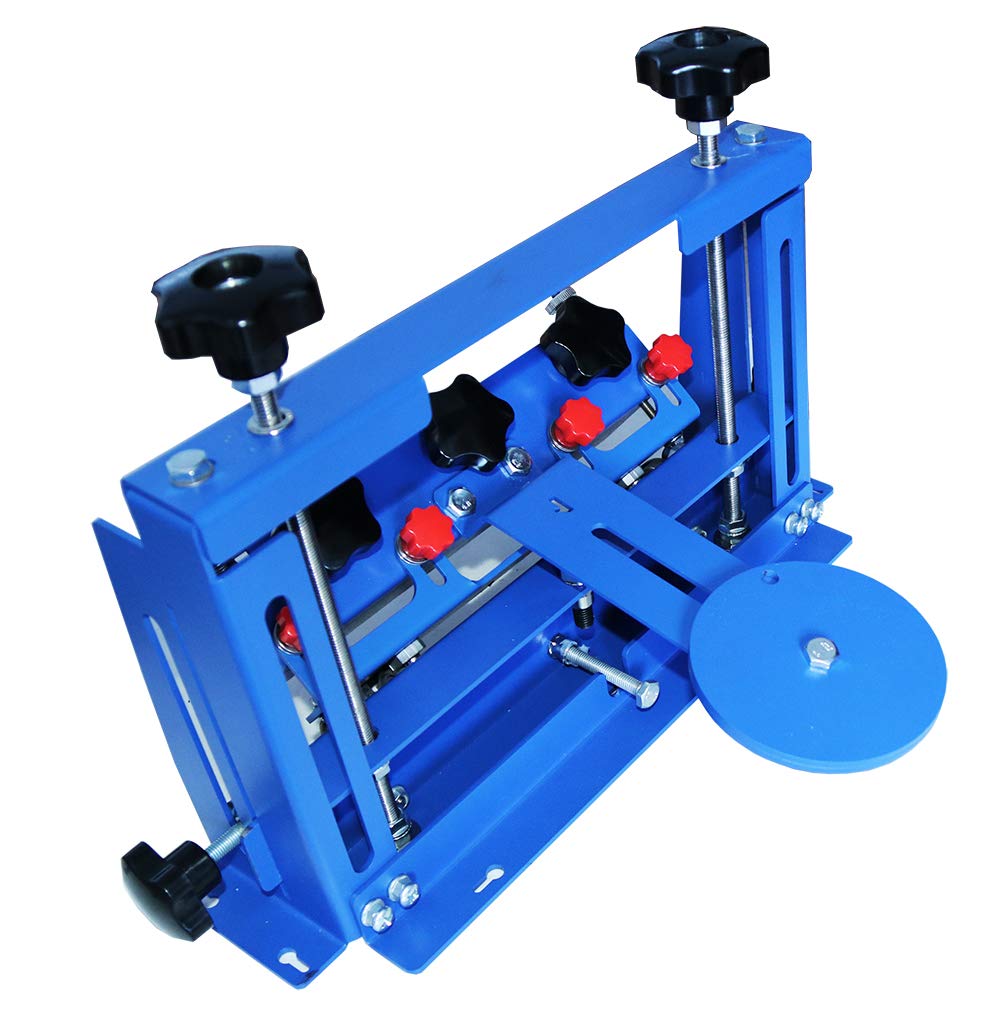

✅【???????? ??????】Equipped with 2 gravity balance plates, they are used to keep balance when lifting the screen according to weight of your screen, it can be moved forward and back within 4 inches. The lifting angle/height can be adjusted as required.

✅【?????? ??? ???????】The overall machine adopts steel plate and special aluminum alloy material which surface is oxidized treatment. Good Structure ensure the stability of the whole machine; All parts can be adjusted according to the screen frame and printing pattern, so as to achieve the most accurate printing.

✅【???? ???????????】This printing press can guarantee precise and fine printing effect. It can be used to printing all kinds of transfer paper, PVC, PET, PC and other soft/ hard film, board, paper, nameplate, and similar materials. It can also be used for the fine printing on heavy and thick products, such as paper boxes, glass, wood boards, metal plates, signage, various plastic boards and etc.It is also suitable for printing cloth, ribbons, handkerchiefs and other textile products.
